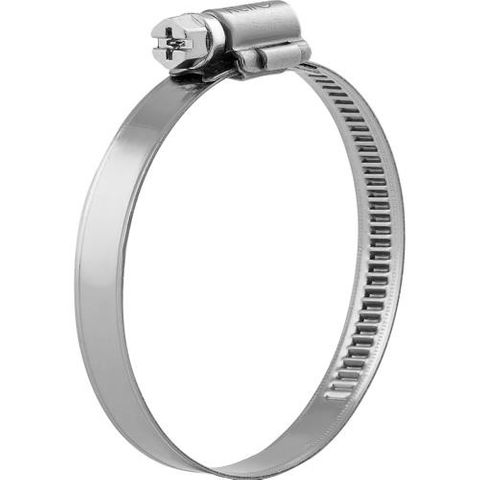

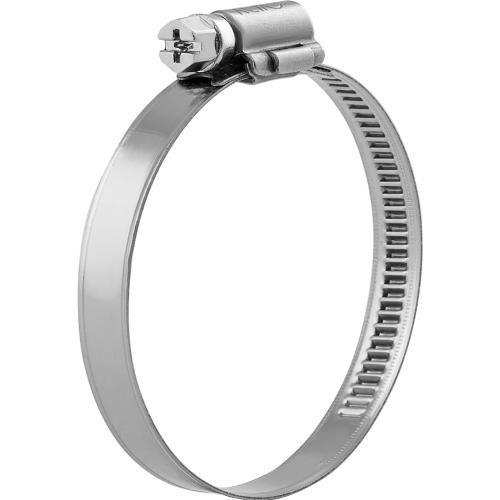

25-40mm Worm Drive Hose Clamp WD12 W3-KALE

Stock Code:
ISLWD122540W3
Retail Price: $5.80 Inc GST
$4.64 Inc GST
Stock Level:
Available - Ships in 4-8 Days

Add To Quote

$4.64 Inc GST

Description

WD12 | 25-40mm capacity | W3
Worm Drive Clamp
Features:
• Light product, easy assembly and space saving with compact housing and screw design.
• Stronger and durable with the mechanically locked single piece design of housing.
• Burr-free and convex band edges.
• 100% traceability on the product.
• High clamping force with low tightening torque.

Technical Spec:
• Band Width - 12mm
• Capacity (min - max) - Ø 25-40mm
• Tightening Torque (max) - 5.0Nm (1)
• Screw Housing Length - 24mm
• Grade W3 - Stainless Screw, Band & Housing (2)
• Corrosion Resistance (min.Hour) IS0 9227 - 200 (3)
• Screw Head - FL | 7mm Hex

(1) Recommended tightening torque. Recommended tightening speed 300 - 350 rpm
(2) Screw - 1.4016 Stainless DIN EN-10088-3 or equivalent | Housing & Band - 1.4016 Stainless DIN EN-10088-2 or equivalent
(3) 10% red rust allowed on the total surface of W3 products, after salt spray test

KALE is certified with ISO TS 16949, ISO 9001, ISO 14001 management systems as per the expectations of the global automotive industry.
